84 10 011 Replacing emergency battery for Telematic Communication Box (TCB)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe the information on PROTECTION FROM ELECTROSTATIC DISCHARGE .

Necessary preliminary tasks:

Remove the TELEMATIC COMMUNICATION BOX (TCB) .

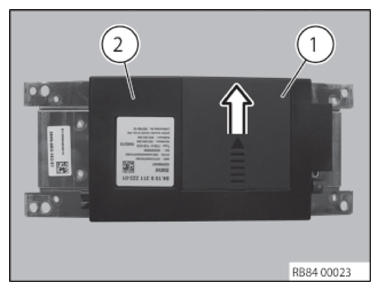

Open lid (1). on TCB (2) in direction of arrow.

Fig 1: Opening Lid On TCB

Courtesy of BMW OF NORTH AMERICA, INC.

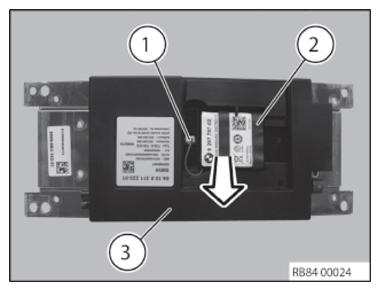

Disconnect connector (1).

Remove emergency battery (2) from TCB (3).

Fig 2: Removing Emergency Battery From TCB

Courtesy of BMW OF NORTH AMERICA, INC.
