72 12 000 Removing and installing or replacing airbag module on passenger's side
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
WARNING:
Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Incorrect handling can activate airbag and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE CABLE
- Remove DASHBOARD

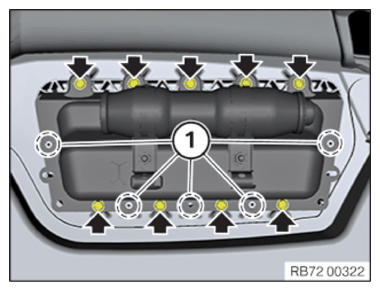

Release all screws on airbag module.
9 screws = F06, F07, F12, F13, F18
10 screws = F10, F11
Tightening torque 72 12 01AZ .
Remove airbag module from dashboard.
IMPORTANT:

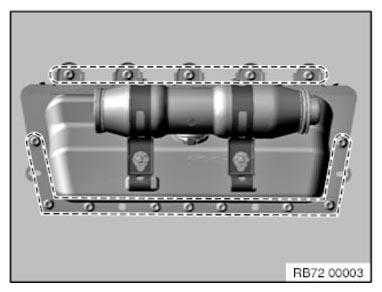

Illustrated on F06 in graphic. There may be differences in detail in the case of other vehicles. The number of screws may differ.
NOTE:
If the specified torque is not reached at one
threaded fastener, the airbag has to be secured additionally at all
bolting points (1).
Drill out all bolting points (1).
Diameter 4, 7 mm
Depth (including airbag module) 15.5 - 16.0 mm
Do not re-use a faulty threaded fastener.
If there is more than one faulty threaded fastener the instrument panel has to be replaced.
