35 11 000 Removing and installing (replacing) complete bearing support for foot pedal

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, carry out function check.

Necessary preliminary work:

Remove BRAKE SERVO

Release screws (1).

Remove control units from holder (2). Plugs remain connected.

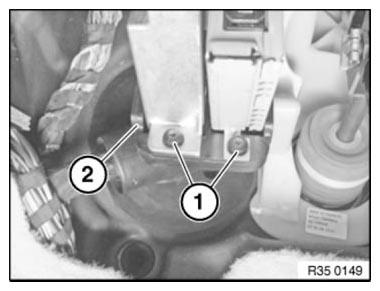

Fig 1: Identifying Control Units Holder And Screws

G06894910

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Installation note:

Replace self-locking nut.

Tightening torque 35 11 2AZ .

Remove bearing support (2).

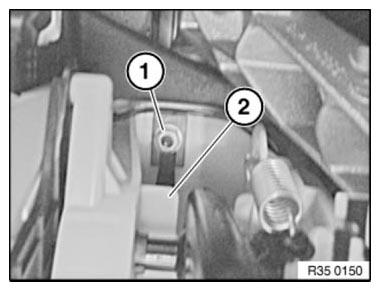

Fig 2: Identifying Bearing Support, Self-Locking Nut

G06894911

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip line (1).

Disconnect plug connection (2).

Replacement

Modify brake light switch
Modify holder for control units

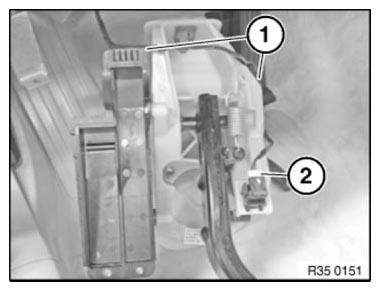

Fig 3: Identifying Plug Connection And Line
