35 21 041 Replacing spring for brake pedal

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FOOTWELL TRIM on driver's side

Disconnect return spring (1).

NOTE: Check grommet (2) for damage, replace if necessary.

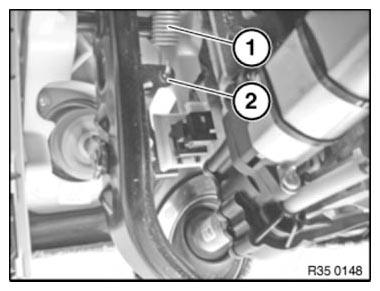

Fig 1: Identifying Grommet And Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.
