65 50 025 Removing and installing/replacing video switch
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
NOTE:
Follow instructions for HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD
Remove left luggage compartment panel end cover (1).
Remove luggage compartment flap (2).
Unscrew nuts (1).
Lift out expanding rivets (2).
Remove left floor panel support (3).
Installation:
Expanding rivets (2) must not be damaged.

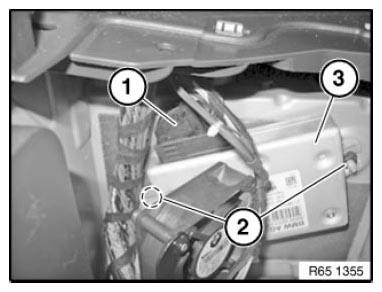

Unfasten plug connection (1) and disconnect.
Unscrew nuts (2).
Remove video switch (3).
