65 13 060 Removing and installing/renewing speaker (mid-range speaker, in instrument panel)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Unclip trim (1) with special tool 00 9 325 from latch mechanisms and remove upwards.

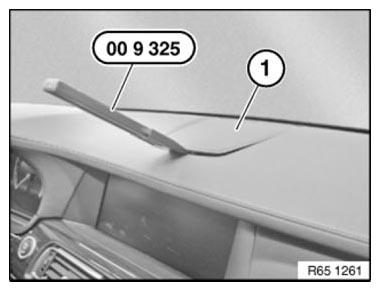

Fig 1: Unclipping Trim From Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Marked retaining lugs must not be damaged.

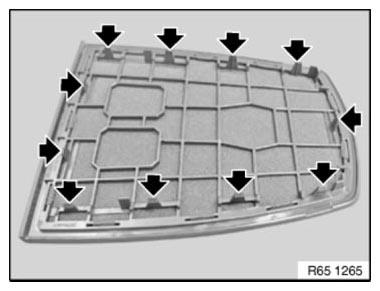

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic is an example!

Release screws (1).

Remove speaker (2).

Disconnect plug connection underneath and remove speaker (2).

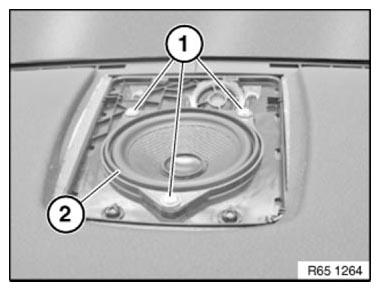

Fig 3: Identifying Screws And Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
