65 13 057 Removing and installing/replacing speaker system (High End sound system, in dashboard trim panel)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Necessary preliminary work:

Remove COVER ON SPEAKER SYSTEM

NOTE: Picture for example purposes F12.

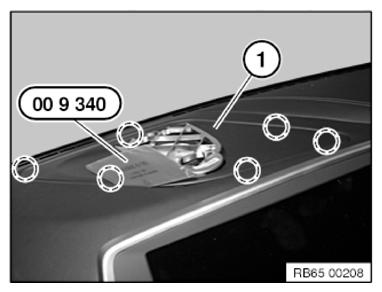

Use special tool 00 9 340 to unclip cover (1) at marked points.

Fig 1: Unclipping Cover At Marked Points

G09881751

Courtesy of BMW OF NORTH AMERICA, INC.

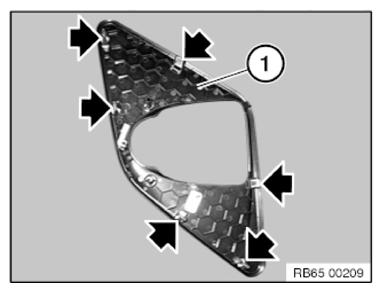

Clamps on cover (1) must not be damaged.

Replace clamps if necessary.

Fig 2: Locating Clamps On Cover

G09881752

Courtesy of BMW OF NORTH AMERICA, INC.

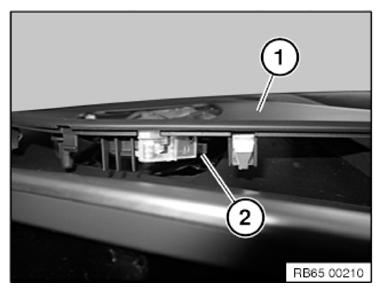

Disconnect plug connection (2).

Remove cover (1).

Fig 3: Identifying Plug Connection And Cover

G09881753

Courtesy of BMW OF NORTH AMERICA, INC.

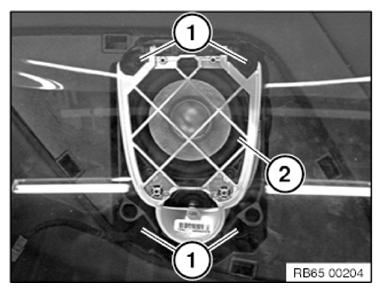

Release screws (1).

Remove speaker system (2) from dashboard.

Fig 4: Identifying Screws And Speaker System From Dashboard

G09881754

Courtesy of BMW OF NORTH AMERICA, INC.

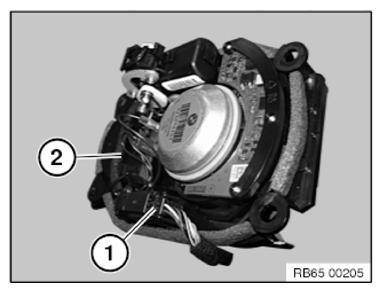

Unlock plug connection (1) and disconnect.

Remove speaker system (2).

Fig 5: Identifying Plug Connection And Speaker System

G09881755

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

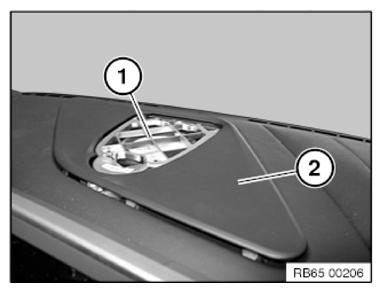

Speaker system (1) must be adjusted.

Observe the following notes for this:

Insertion of speaker system (1) in dashboard
Placement of cover (2), this pre-centers of speaker system
Removal of cover (2) and screw connection from the two front screw points
Renewed placement of cover (2) and if necessary subsequent centering of speaker system
Removal of cover (2) and screw connection from the two rear screw points
Renewed placement of cover (2)
If joint speaker system (1) not OK, then manual fine tuning of joint

Fig 6: Identifying Speaker System And Cover
Courtesy of BMW OF NORTH AMERICA, INC.
