65 13 050 Removing and installing/replacing speaker (tweeter, triangular mirror section, left or right)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Carefully unclip cover for mirror triangle (1) in area (2).

Remove mirror triangle cover (1) in direction of arrow.

Disconnect plug connection behind.

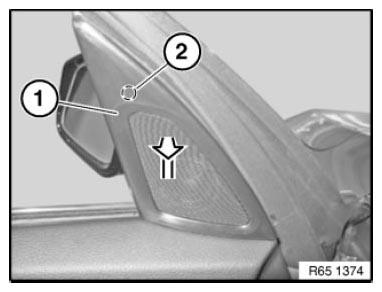

Fig 1: Removing Mirror Triangle Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) and retaining lug (2) must not be damaged.

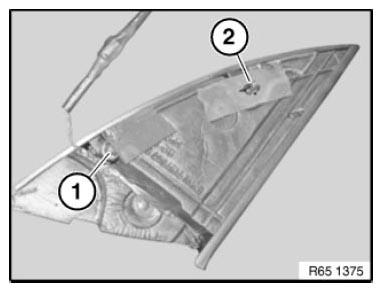

Fig 2: Identifying Guide And Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip tweeter (1) at retaining lugs (2) and remove from mirror triangle cover (3).

Installation:

Retaining lugs (2) must not be damaged.

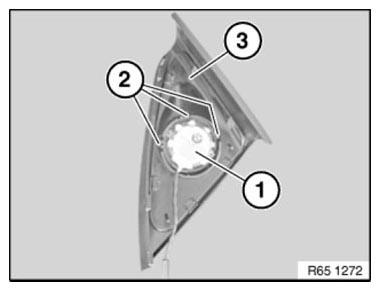

Fig 3: Identifying Tweeter, Retaining Lugs And Mirror Triangle Cover

Courtesy of BMW OF NORTH AMERICA, INC.
