65 24 020 Removing and installing/replacing blocking circuit
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Lower rear headliner. See HEADLINER or HEADLINER WITH PANORAMA GLASS ROOF .

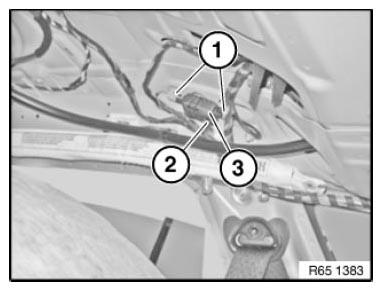

Unlock plug connections (1) and disconnect.
Release screw (2).
Remove blocking circuit (3).
Installation:
Ensure suppressor circuit (3) is seated correctly.
