65 12 265 Removing and installing/replacing DVD player in rear console

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes on HANDLING OPTICAL FIBRES .

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD
Remove CENTER CONSOLE .

Unlock plug connections (1) and disconnect.

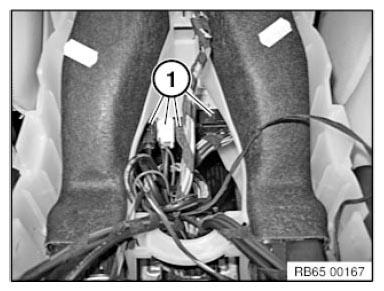

Fig 1: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock associated plug connections and disconnect.

Remove DVD player (2).

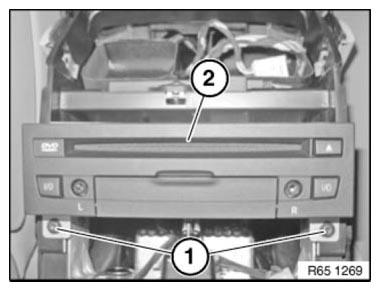

Fig 2: Identifying Screws And DVD Player

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out VEHICLE PROGRAMMING/ENCODING .
