65 12 072 Removing and installing Top HiFi system

Necessary preliminary work:

• Disconnect NEGATIVE BATTERY CABLE

Remove lid of left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Installation note:

Make sure lid (1) and flap (2) are correctly seated.

Fig 1: Identifying Luggage Compartment Flap And Luggage Compartment Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lift out expanding rivets (2).

Remove left shelf support (3).

Fig 2: Identifying Expanding Rivets, Shelf Support And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

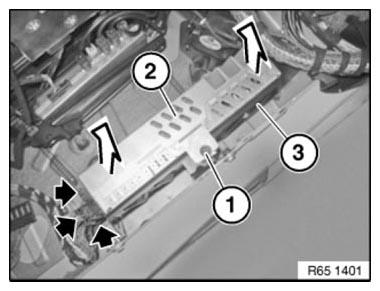

Release screw (1).

Remove amplifier (2) in direction of arrow from holder (3).

Unlock plug connections and disconnect.

Fig 3: Removing Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

Install cable jumper consisting of socket (1) (BMW Parts Service 6901844) and wire jumper (2) in connector (3).

Create wire jumper (2) from wire (cross-section 0.75 mm² ) and two stops

(BMW Parts Department 1393724). Then connect pins 1 and 2 in the socket (1) with wire jumper (2).

Fig 4: Installing Cable Jumper Of Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

Fig 5: Identifying Amplifier, Tabs And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out VEHICLE PROGRAMMING AND ENCODING .
