65 82 300 Removing and installing (replacing) Touchbox controller control unit

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove COMPLETE CENTER CONSOLE

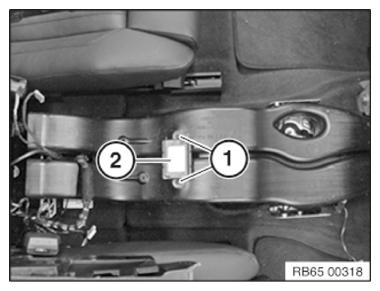

Version with air duct:

Loosen the screws (1).

Remove Touchbox (2).

Fig 1: Identifying Screws And Touchbox

Courtesy of BMW OF NORTH AMERICA, INC.

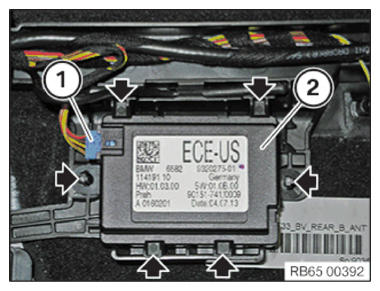

Version without air duct:

Unfasten plug connection (1) and disconnect.

Release latch mechanisms at marked points.

Remove Touchbox (2).

Fig 2: Locating Touchbox Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out VEHICLE PROGRAMMING AND ENCODING .
