66 53 060 Removing and installing/renewing the Top View camera

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RETAINING RING ON EXTERIOR MIRROR

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove exterior mirror camera.

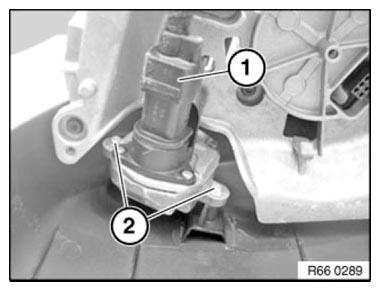

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use of a special tool is no longer required.

Calibration

Calibration is performed via BMW diagnosis system:
- Service function
- Body
- All-round vision camera
- Calibration of all-round vision camera
