66 54 015 Replacing lens cover for night vision camera

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Completely remove NIGHT VISION CAMERA

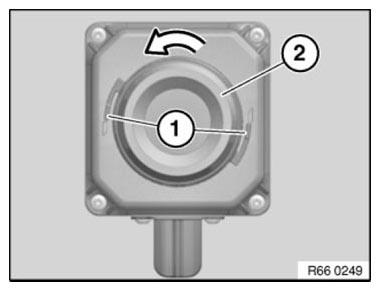

Unlock latch mechanisms (1) and unfasten cover (2) in direction of arrow.

Fig 1: Unlocking Latch Mechanisms

G06886565

Courtesy of BMW OF NORTH AMERICA, INC.

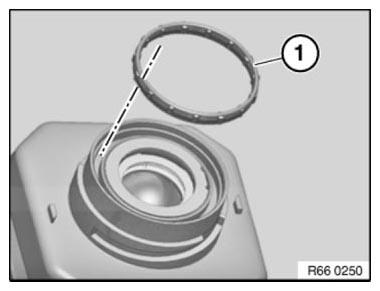

Carefully remove sealing ring (1).

IMPORTANT: Adjoining surface of lens must not be damaged when sealing ring is removed!

Installation note:

Replace sealing ring.

Fig 2: Identifying Sealing Ring

G06886566

Courtesy of BMW OF NORTH AMERICA, INC.

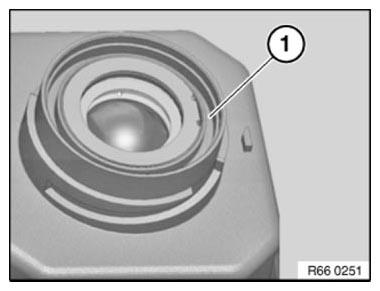

Thoroughly clean seal recess (1) with cleaning agent* containing alcohol and cotton bud.

* BMW part number: 83 11 0009712

Fig 3: Identifying Seal Recess

G06886567

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Adjust NIGHT VISION CAMERA .
Fill up with washer fluid.
