63 21 180 Removing and installing/replacing left or right rear light (in side panel)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE .

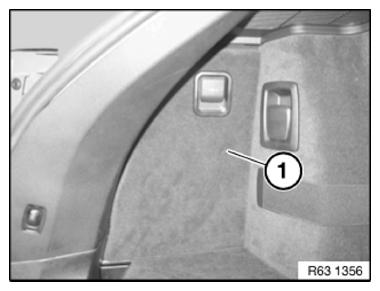

Remove luggage compartment lid (1).

If necessary unfasten plug connection.

Fig 1: Identifying Luggage Compartment Lid

G09881369

Courtesy of BMW OF NORTH AMERICA, INC.

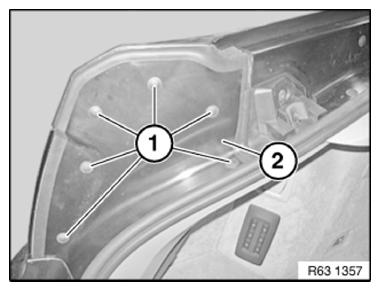

Carefully pull out expanding rivets.(1)

Remove bottom water drain cover (2).

Installation:

Expanding rivets (1) must not be damaged.

Fig 2: Identifying Water Drain Cover And Expanding Rivets

G09881370

Courtesy of BMW OF NORTH AMERICA, INC.

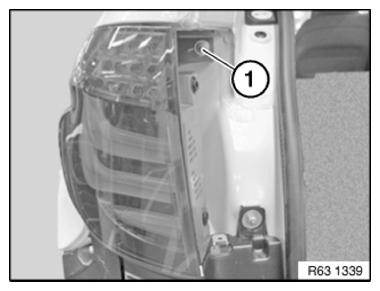

Slacken nut (1).

Tightening torque 63 21 3AZ .

Fig 3: Identifying Rear Light Nut

G09881371

Courtesy of BMW OF NORTH AMERICA, INC.

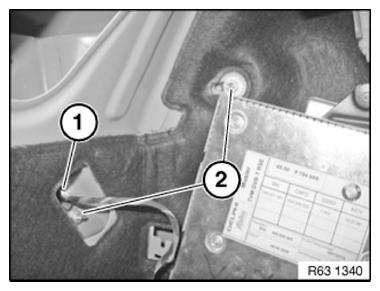

Disconnect plug connection (1).

Unscrew nuts (2).

Tightening torque 63 21 3AZ .

Fig 4: Identifying Plug Connection And Nuts

G09881372

Courtesy of BMW OF NORTH AMERICA, INC.

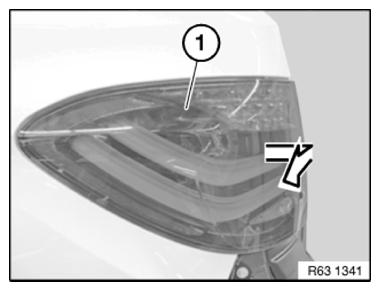

Remove left rear light (1) in direction of arrow.

Fig 5: Removing Left Rear Light

G09881373

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

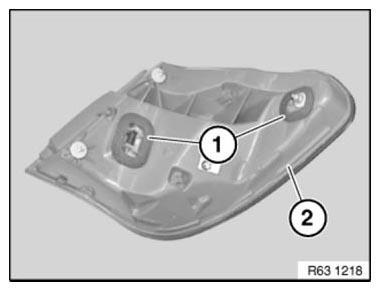

Make sure sealing frame (1) for tail light (2) is correctly seated.

If necessary, replace SEALING FRAME (1).

Fig 6: Identifying Sealing Frame And Rear Light

G06886112

Courtesy of BMW OF NORTH AMERICA, INC.
