63 99 160 Replacing bulb for front left turning lights

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove cover (1) from left engine compartment lid seal mounting.

Fig 1: Identifying Cover

G06886140

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Headlight shown removed for purposes of clarity.

Turn cover (1) on headlights (2) in direction of arrow and remove.

Installation note:

Protective cap (1) must be correctly engaged.

Check seal.

Replace protective cap (1) if necessary.

Comply with instructions for REPLACING THE PROTECTIVE CAP .

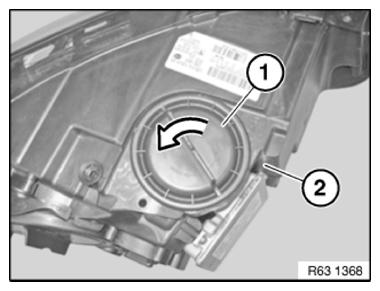

Fig 2: Turning Cover On Headlights

G09881341

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb (1) in direction of arrow and remove.

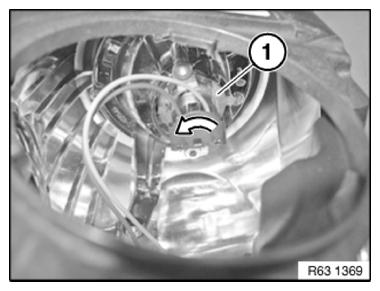

Fig 3: Turning Bulb

G09881430

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock clamps (1) and disconnect plug connection (2).

Remove bulb (3).

Replacement:

Note BULB TYPE .

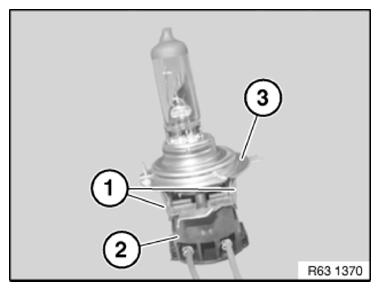

Fig 4: Identifying Bulb, Clamps And Plug Connection

G09881343

Courtesy of BMW OF NORTH AMERICA, INC.
