63 99 002 Replacing halogen bulb for high beam headlight on left

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Open end cover of engine compartment lid seal mounting (1) in direction of arrow.

Fig 1: Opening End Cover Of Engine Compartment Lid Seal Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

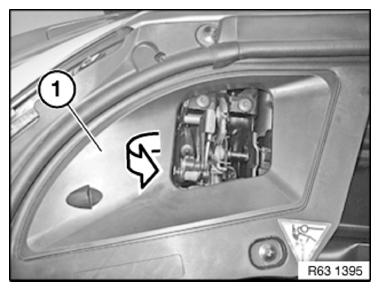

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with instructions for REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly!
Turn the protective cap (1) clockwise to end stop (A)!

Fig 2: Removing/Installing Protective Cap Clockwise

Courtesy of BMW OF NORTH AMERICA, INC.

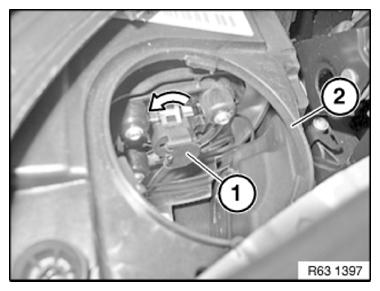

Turn bulb holder (1) in direction of arrow and remove towards rear from headlight (2).

Fig 3: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

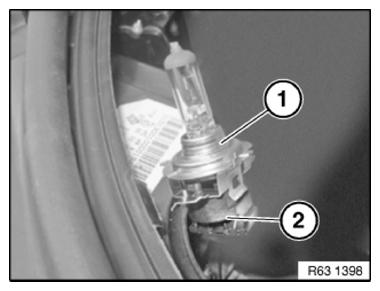

Detach bulb (1) from bulb holder (2).

Installation note:

Make sure bulb holder (2) is seated correctly.

Note BULB TYPE .

Fig 4: Identifying Bulb And Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
