63 31... Removing and installing/replacing fiber optic conductor of rear door trim panel, storage compartment

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Fiber optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL
Work station with cleaner working surface

Fiber optic conductor in storage compartment:

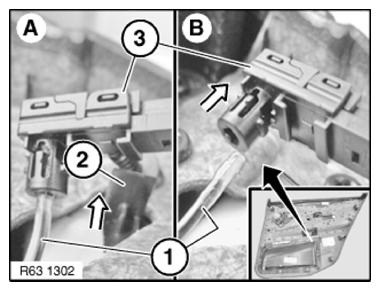

Remove LED module (3) in direction of arrow from bracket (2).
Carefully pull LED module (3) from fiber optic conductor (1).

Fig 1: Pulling LED Module From Fiber Optic Conductor
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Use suitable protector (2) to avoid damaging the storage compartment.

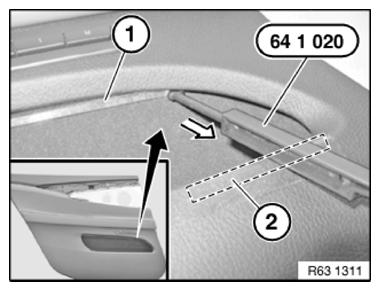

Pull out fiber optic conductor (1) with special tool 64 1 020 and unclip.

Fig 2: Pulling Out Fiber Optic Conductor Using Special Tool 64 1 020

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: (Risk of fiber optic conductor (1) breaking!)

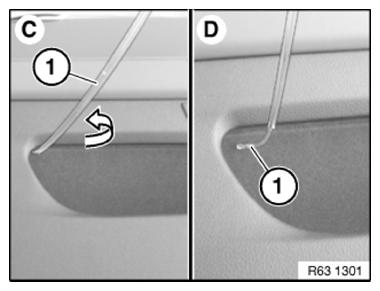

Pull downward
Turn downward towards rear side of storage compartment

Fig 3: Pulling Fiber Optic Conductor Downward And Toward Rear Side Of Storage Compartment
Courtesy of BMW OF NORTH AMERICA, INC.

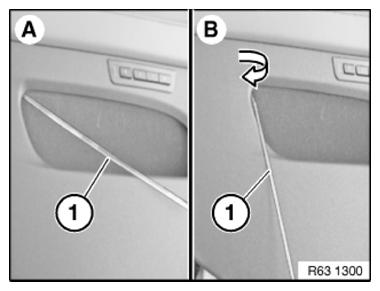

Fold straight up
Feed out and remove

Fig 4: Removing Fiber Optic Conductor
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check fiber optic conductor (1) for damage (scratches or cracks), replace if necessary.

Fig 5: Identifying Fiber Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
