63 31... Removing and installing/replacing fiber optic conductor of door panel, top rear

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Fiber optic conductors are sensitive (risk of damage). Always handle carefully.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Carefully detach fiber optic conductor (1) from LED module (3) (retainer).

Installation:

LED-module (3) must lock into position (light distribution).

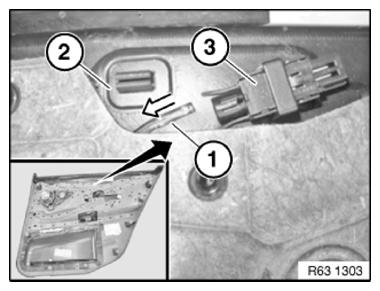

Fig 1: Detaching Fiber Optic Conductor From LED Module (Retainer)

Courtesy of BMW OF NORTH AMERICA, INC.

Upper fiber optic conductor

Use special tool 64 1 020 to unclip fiber optic conductor (3) from retaining clips (1) in door panel (2) and remove.

Installation:

The fiber optic conductor (3) must be securely locked in the retaining clips (1) on the door trim panel (2).

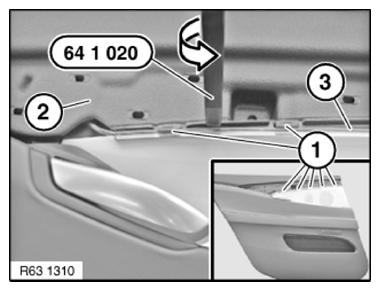

Fig 2: Identifying Trim Panel, Fiber Optic Conductor, And Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check fiber optic conductor (1) for damage (scratches or cracks), replace if necessary.

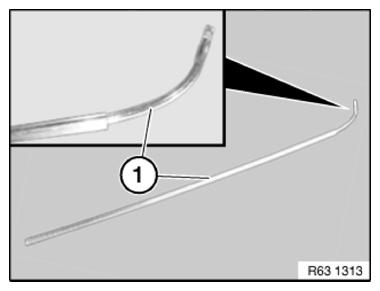

Fig 3: Identifying Fiber Optic Conductor

Courtesy of BMW OF NORTH AMERICA, INC.
