63 31 003 Removing and installing/replacing complete interior roof light (rear)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

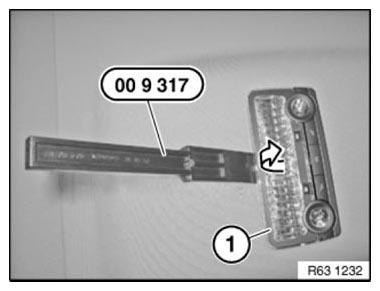

Carefully lever out interior roof light (1) in direction of arrow with special tool 00 9 317 .

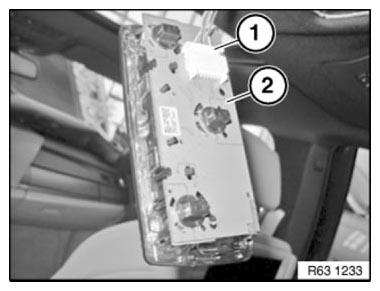

Disconnect plug connection (1) and remove roof light (2).
IMPORTANT:
Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .
Replacement:
- If necessary, remove bulbs
Note BULB TYPE
