67 16 011 Removing and installing/replacing left headlight vertical aim adjuster
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage!
Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (control unit, ignition device with lamp) may only be carried out by qualified personnel.
Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (control unit, ignition device with lamp) may only be carried out by qualified personnel.
Necessary preliminary tasks:
- Remove HEADLIGHT

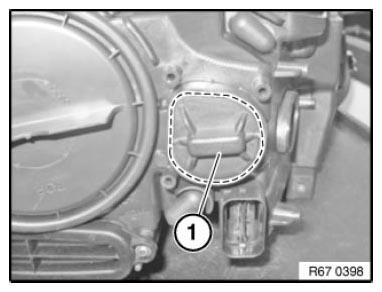

Cut out headlight aim adjuster cover (1) along the dashed line and remove.
Installation note:
Repair cover sourcing reference, see BMW parts catalogue.

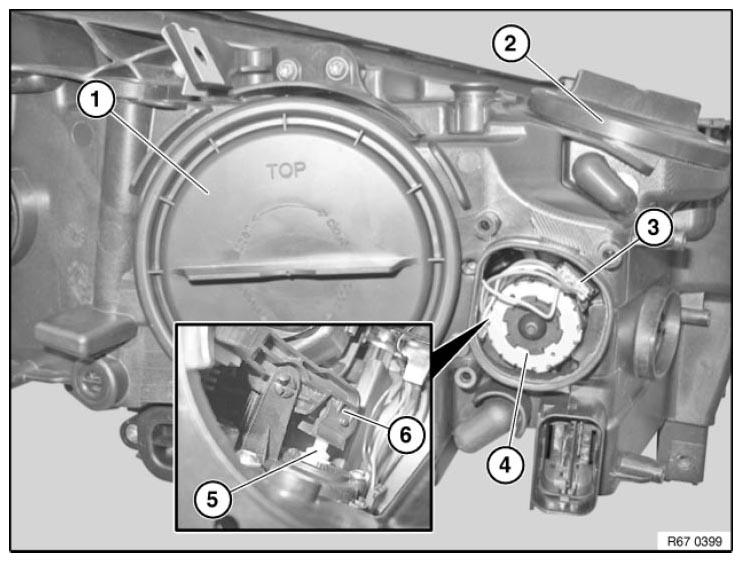

Loosen (1 and 2).
Disconnect plug connection (3).
Unlock bayonet fitting on headlight vertical aim adjuster (4) by turning counter-clockwise.
Unsnap ball head (5) from socket (6) via opening (2).
Installation note:

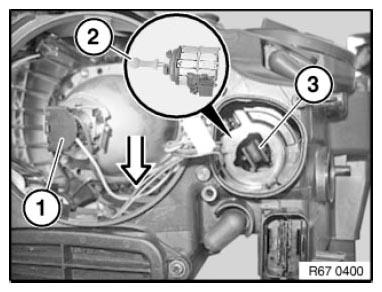

Swing light unit (1) downwards.
Snap headlight aim adjuster in socket (2).
Ball head (2) must be correctly latched in socket (3).
Lock headlight aim adjuster.
After installation
