63 12 870 Replacing ignition unit for left xenon headlight

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Release screws (1).

Remove lid (2) in direction of arrow.

Fig 1: Removing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

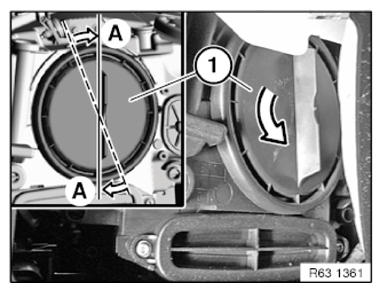

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with instructions for REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly!
Turn the protective cap (1) clockwise to end stop (A)!

Fig 2: Removing/Installing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on ignition device with bulb (2).

Remove ignition device with bulb (2) in direction of arrow.

Fig 3: Identifying Ignition Device And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Recommendation:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
