63 12 860 Replacing control unit for left xenon headlight
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon lighting system: Danger to life due to high voltage! Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Comply with notes and notes on handling EXTERIOR LIGHTS .
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Comply with notes and notes on handling EXTERIOR LIGHTS .
IMPORTANT:
Read and comply with information on PROTECTION AGAINST ELECTROSTATIC DISCHARGE
!
Necessary preliminary tasks:
- Remove LEFT HEADLIGHT

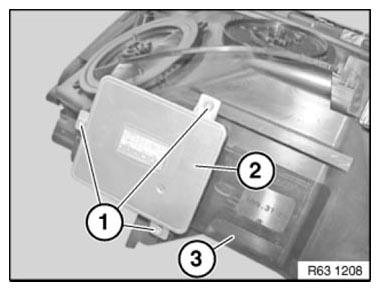

Release screws (1).
Tightening torque 63 12 5AZ .
Remove control unit for xenon headlight (2) from headlight (3).
Installation note:
When installing control unit for xenon headlight (1), make sure sealing cup (2) is correctly seated.
