The night vision electronics convert the image signals received from the Night Vision camera into a CVBS signal (CVBS: Composite Video Burst Synchronization) The control unit has several processors for person recognition and communication within the vehicle electrical system.

The BMW Night Vision has an integrated person recognition system. With it, it is possible to have a secure person recognition with a range of approx. 100 meters independent of the weather.

The night vision electronics search for objects in the form of persons in the delivered image. It determines their position and distance. The control unit transmits the data as a message on the data bus.

The warning range ahead of the vehicle is determined based on the driving speed and steering angle.

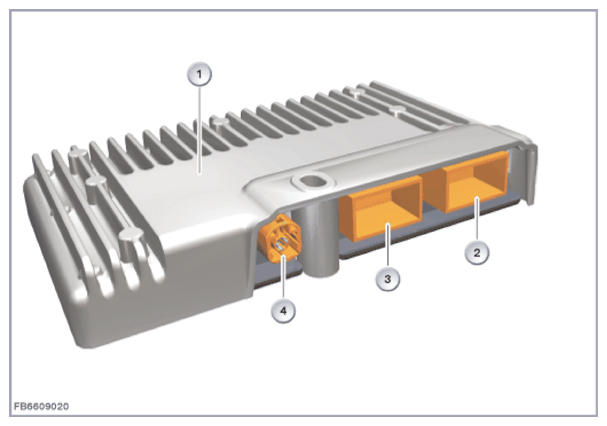

Fig 1: Identifying Night Vision Electronics Components

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Night vision electronics (NVE)
2	12-pin plug connection
3	12-pin plug connection
4	six-pin plug connection
