37 14 525 Removing and installing/replacing control unit for air supply system

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work

Remove ignition key
Disconnect BATTERY EARTH LEAD
Remove REAR RIGHT LUGGAGE COMPARTMENT TRIM PANEL

F07

Unfasten connector connection and disconnect.

Remove control unit (1).

Fig 1: Identifying Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

F11

Loosen the nuts (1), disconnect the connector (2) and remove the control unit.

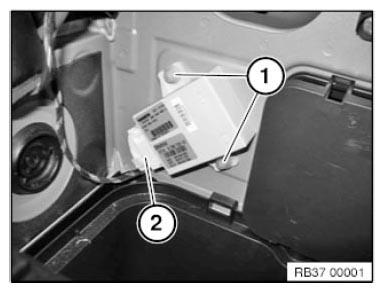

Fig 2: Identifying Nuts And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Replacement only: Carry out PROGRAMMING/ENCODING
Replacement only: Carry out RIDE HEIGHT ADJUSTMENT
