37 14 515 Replacing front left or right ride-height sensor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Unfasten plug connection (1) and disconnect.

Release nut (2) and disconnect jointed rod.

Tightening torque 37 14 4AZ .

Release screw (3) and remove ride-height sensor (4).

Tightening torque 37 14 2AZ .

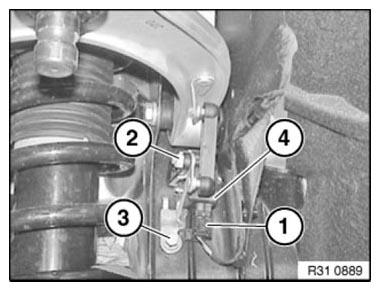

Fig 1: Identifying Plug Connection, Ride-Height Sensor, Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1). Remove bracket (2) from ride-height sensor.

Tightening torque 37 14 3AZ .

Fig 2: Identifying Ride-Height Sensor Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Carry out RIDE-HEIGHT CALIBRATION
Check HEADLIGHT ADJUSTMENT , correct if necessary
