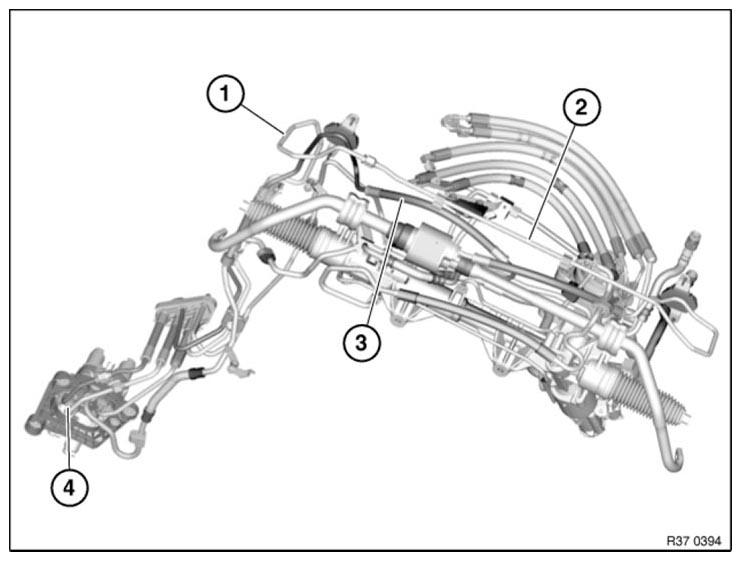

37 13... Overview of Dynamic Drive (ARS) pressure lines, front axle
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Designation |
|---|---|
| 1 | PRESSURE LINE , valve block VA1 |
| 2 | PRESSURE LINE , swivel motor VA1 |
| 3 | PRESSURE LINE , swivel motor VA2 |
| 4 | Valve block PRESSURE LINES (short, rear-wheel drive only) |
