52 26 210 Removing and installing/replacing headrest for left or right rear seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Press lock (2) and move head restraint upwards to maximum extent.

Pull out head restraint (1) firmly.

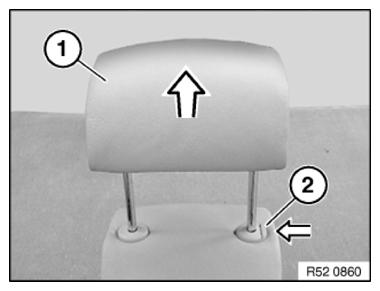

Fig 1: Pulling Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
