52 26 117 Removing and installing/replacing Bowden cable for right rear seat backrest
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove BACKREST COVER on right.

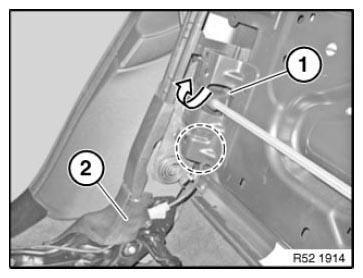

Unclip Bowden cable sleeve (1).
Unhook Bowden cable nipple (2).

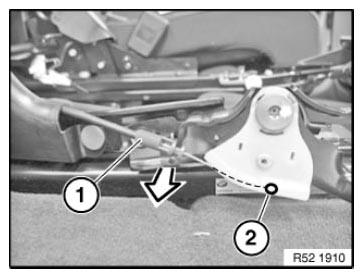

Detach Bowden nipple (1).
Unclip Bowden cable sleeve in marked area.
Pull Bowden cable out through cover (2).
