52 26 030 Removing and installing/replacing armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Lift off cover (1).

Installation:

If necessary, replace faulty clips.

Fig 1: Lifting Seat Backrest Cover

G08487025

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off cover.

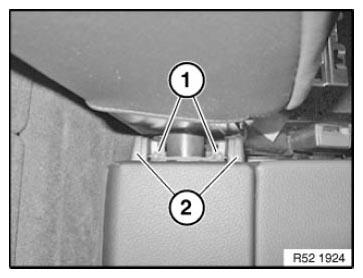

Release screws (1) underneath.

Tightening torque 52 26 10AZ .

Remove cover (1) for center armrest in downward direction.

Fig 2: Identifying Center Armrest Cover And Screws

G08487026

Courtesy of BMW OF NORTH AMERICA, INC.

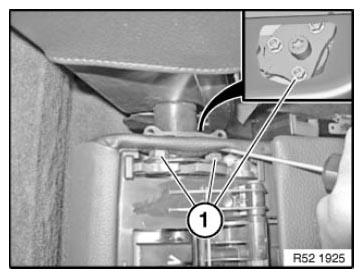

Unscrew nuts (1).

Tightening torque 52 26 03AZ .

Fig 3: Removing Center Armrest Nut

G08487027

Courtesy of BMW OF NORTH AMERICA, INC.

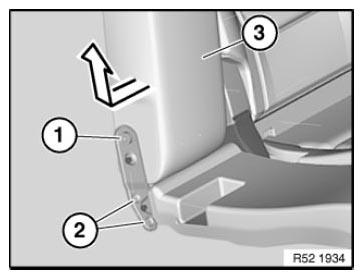

Release screw (1).

Tightening torque 52 26 02AZ .

Release screws (2) and take off swinging arm.

Tightening torque 52 26 11AZ .

Remove center armrest (3) in direction of arrow.

Fig 4: Removing Center Armrest

G08487028

Courtesy of BMW OF NORTH AMERICA, INC.
