52 25 380 Removing and installing/replacing left or right rear head restraint mount

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BACKREST COVER .

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove headrest support (3).

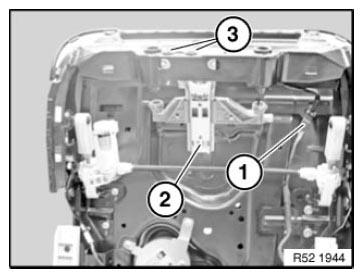

Fig 1: Identifying Headrest Support, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
