52 25 201 Removing and installing/replacing rear panel on right rear seat back

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear panel in marked area and remove upwards.

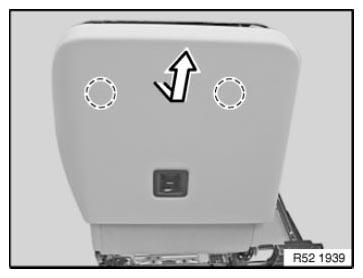

Fig 1: Removing Right Rear Seat Back Rear Panel
G08486972Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) and guide (2) must not be damaged.

If necessary, replace defective clips or rear panel.

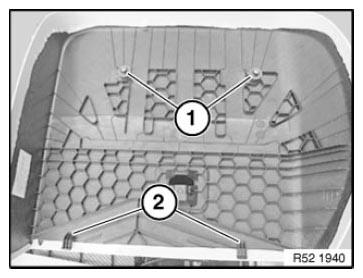

Fig 2: Identifying Right Rear Seat Back Rear Panel Clips And Guide
G08486973Courtesy of BMW OF NORTH AMERICA, INC.
