52 25 137 Removing and installing/replacing backrest frame for right rear seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right REAR SEAT

Unfasten plug connection (1) and disconnect.

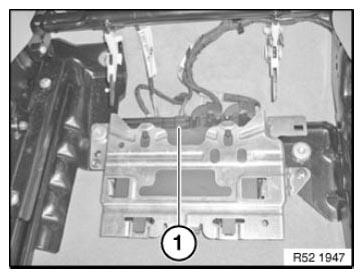

Fig 1: Identifying Backrest Frame Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew all bolts.

Tightening torque 52 25 01AZ .

Work with helper to remove backrest frame from vehicle.

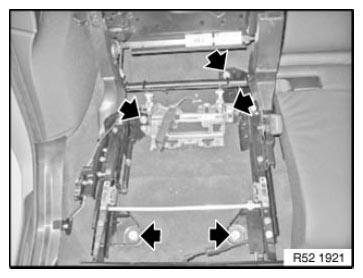

Fig 2: Locating Backrest Frame Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
