52 25 077 Removing and refitting/replacing cover on center armrest

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover (1) upwards.

Installation:

Retaining lugs must not be damaged.

Replace cover if necessary.

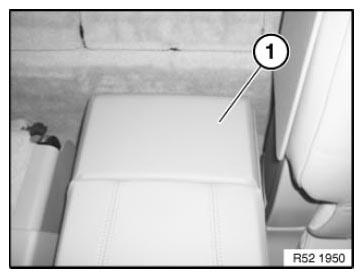

Fig 1: Identifying Rear Seat Backrest Cover
G08486949Courtesy of BMW OF NORTH AMERICA, INC.

Drive out hinge pin (1) and remove cover.

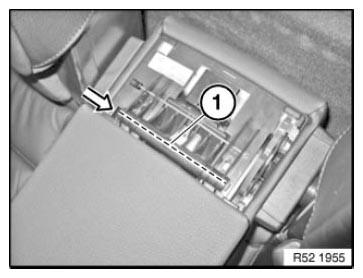

Fig 2: Removing Armrest Cover
G08486982Courtesy of BMW OF NORTH AMERICA, INC.
