52 25 042 Removing and installing/replacing cover for backrest angle adjustment on left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move seat forwards fully

View of seat underside:

Press release (1) with suitable aid and pull off cover.

Unclip trim (2) from operating unit.

Installation:

Ensure trim is correctly seated in marked area (3).

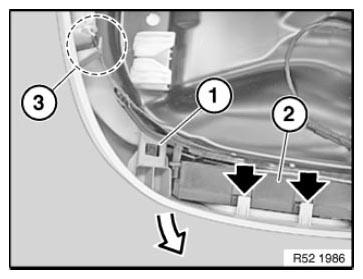

Fig 1: Pulling Backrest Angle Adjustment Operating Unit Cover

G08486959

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully turn trim (1) in downward direction until fastening point of operating unit is uncovered.

Release screw (2).

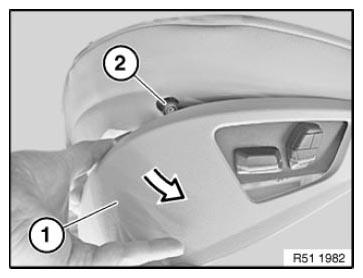

Fig 2: Turning Backrest Angle Adjustment Operating Unit

G08486960

Courtesy of BMW OF NORTH AMERICA, INC.

Turn operating unit (1) in downward direction.

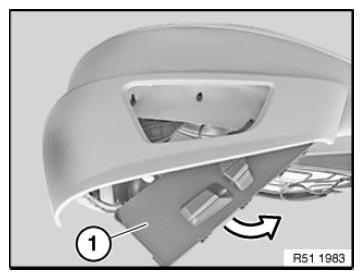

Fig 3: Turning Backrest Angle Adjustment Operating Unit

G08486961

Courtesy of BMW OF NORTH AMERICA, INC.

Press release (1) with suitable aid and pull off cover.

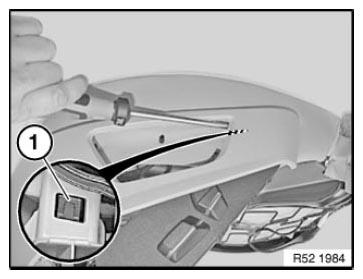

Fig 4: Pulling Backrest Cover

G08486962

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover and cover mount must not be damaged.

If necessary, replace faulty parts.

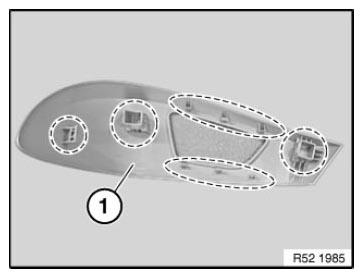

Fig 5: Identifying Backrest Angle Adjustment Operating Unit Cover

G08486963

Courtesy of BMW OF NORTH AMERICA, INC.
