52 25 029 Removing and refitting/replacing cupholder cover

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

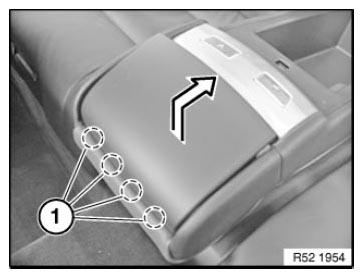

Open cover (1).

Unclip cover (1) upwards in marked area (2) and remove in direction of arrow.

Installation:

Clips and retaining lugs on cover must not be damaged.

If necessary, replace faulty cover.

Fig 1: Removing Cupholder Cover

Courtesy of BMW OF NORTH AMERICA, INC.

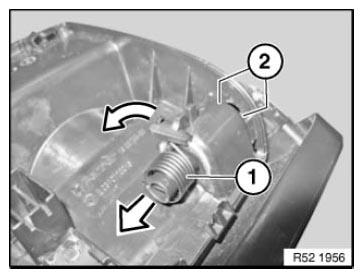

Unhook spring (1) and detach from mounting.

Release left and right mountings at retaining lugs (2) and remove.

Remove cover (3).

Fig 2: Removing Cupholder Cover Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
