52 16... Replacing upholstery for front seat thigh support (older version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Run thigh support forward as far as possible.

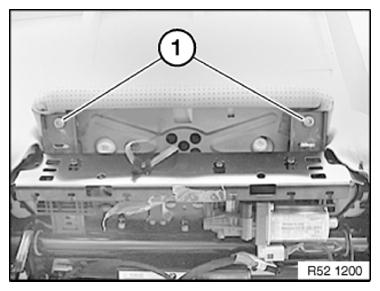

Release screws (1).

Installation note:

Insert screws (1) with Loctite.

Tightening torque 52 10 11AZ .

Fig 1: Identifying Seat Thigh Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

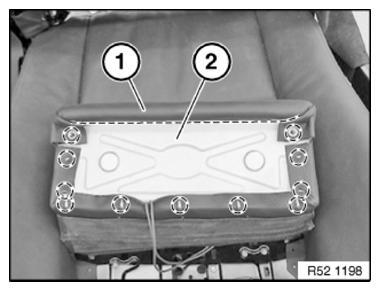

Unhook seat cover (1) from marked area.

Remove carrier (2) for thigh support.

Fig 2: Identifying Seat Cover Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

For seat heating optional extra only:

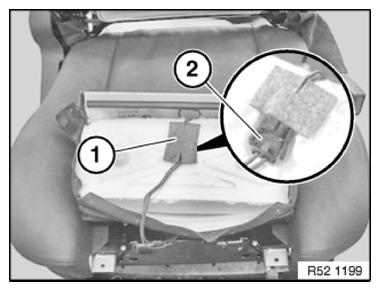

Carefully detach felt (1) from thigh support.

Unfasten plug connection (2) and disconnect.

Installation note:

Ensure correct cable routing.

Remove upholstery from cover.

Fig 3: Identifying Thigh Support Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
