52 16... Replacing upholstery for front seat thigh support (newer version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Move the thigh support (1) completely to the front.

Raise latch mechanisms in succession from A to D, pulling the thigh support (1) forward at the same time.

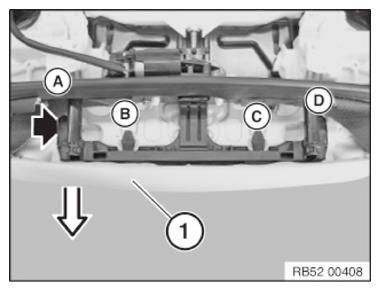

Fig 1: Pulling Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

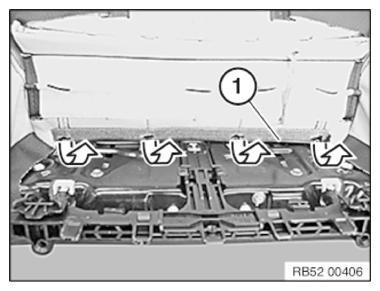

Insert support for thigh support in correct position in the guide and lock.

Fig 2: Inserting Thigh Support In Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from metal tabs.

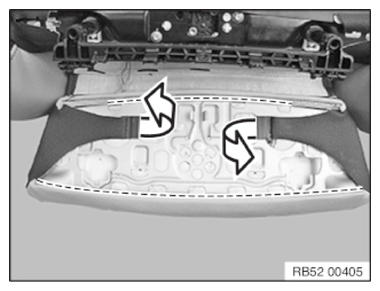

Fig 3: Detaching Welt From Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt from support for thigh support.

Remove the mounting plate and foam part of the thigh support.

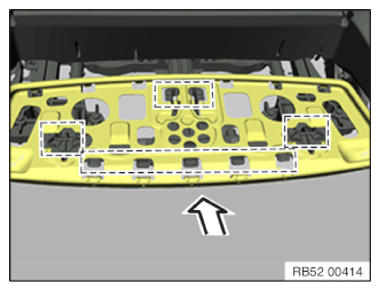

Fig 4: Detaching Welt From Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.
