52 16... Removing/refitting/replacing bracket for thigh support on left or right front seat (older version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move thigh support forwards as far as possible

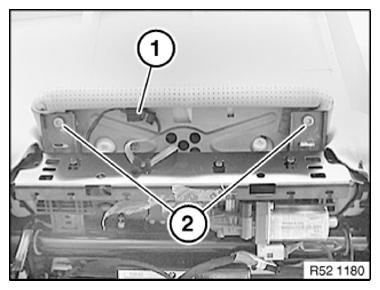

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Installation note:

Insert screws (2) with Loctite.

Tightening torque 52 10 11AZ .

Fig 1: Identifying Seat Thigh Support Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

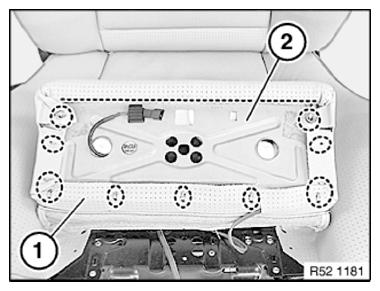

Detach seat cover (1) in marked area from carrier (2) for thigh support.

Feed plug out of carrier (2) for thigh support.

Remove carrier (2) for thigh support.

Fig 2: Identifying Seat Cover Carrier Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.
