52 16... Removing or installing thigh support mechanism at left or right front seat (newer version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove seat cover. See procedure for relevant seat:

- DRIVER'S SPORT SEAT (OLDER VERSION)

- DRIVER'S SPORT SEAT (NEWER VERSION)

- PASSENGER SPORT SEAT (OLDER VERSION)

- PASSENGER SPORT SEAT (NEWER VERSION)

Move thigh support (1) all the way forward.

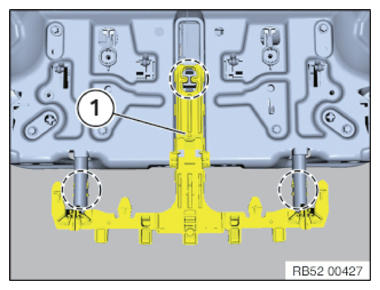

Unlock top thigh support mechanism (1) in marked area:

First unlock thigh support mechanism in the middle.
Pull thigh support mechanism toward the front while unlocking the left and right side at the same time.

Fig 1: Identifying Seat Thigh Support
Courtesy of BMW OF NORTH AMERICA, INC.

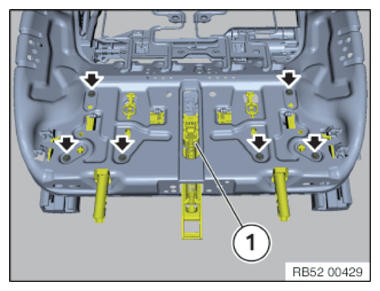

Release screws.

Remove bottom thigh support mechanism (1).

Fig 2: Identifying Thigh Support Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
