52 16... Removing and installing/replacing left or right seat rail on front seat (sport, electrical)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove driver's or front passenger seat. See REMOVING DRIVER'S SEAT or REMOVING FRONT PASSENGER SEAT .
- Raise front seat as far up as possible

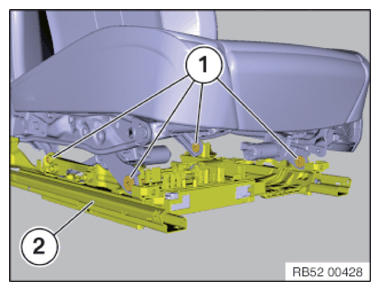

Release all plug connections and cable clips from the seat rail (2).
Release screws (1).
Tightening torque 52 10 6AZ .
Remove seat rail (2).
