52 13 015 Removing and installing/replacing actuating unit on left or right front seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OUTER COVER on front seat

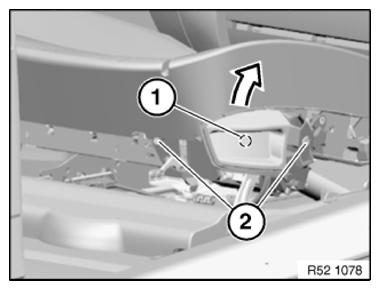

Pull lever and release screw (1).

NOTE: Protect seat rails (mechanism) by covering against chips/debris.

Drill out rivets (2) with 4.2 mm dia. drill bit.

Remove actuating unit.

Fig 1: Removing Front Seat Outer Cover

Courtesy of BMW OF NORTH AMERICA, INC.

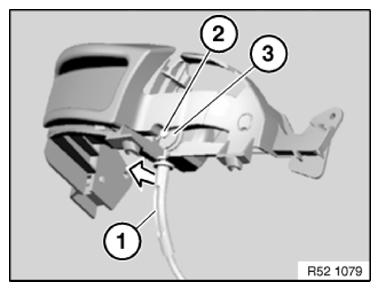

Unclip Bowden cable sleeve (1).

Feed Bowden cable nipple (2) out of fixture (3).

Fig 2: Removing Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
