52 14 390 Removing and installing/replacing left or right front head restraint (normal, electrical)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Lever out retaining clips (1)

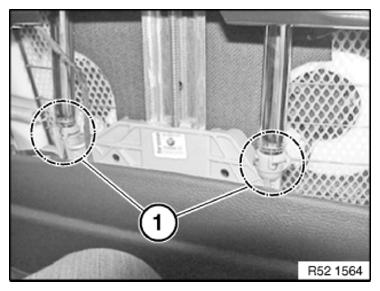

Fig 1: Identifying Head Restraint Retaining Clips
G09879908Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

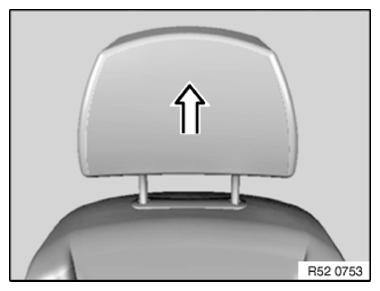

Fig 2: Lifting Head Restraint
G09879909Courtesy of BMW OF NORTH AMERICA, INC.
