52 14 060 Removing and installing/replacing valve body for left or right front lumbar support

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear panel. See REAR PANEL (VERSION 1) or UPPER REAR PANEL (VERSION 2) .

Remove valve body in direction of arrow from backrest frame.

Installation note:

Check that valve body is correctly seated.

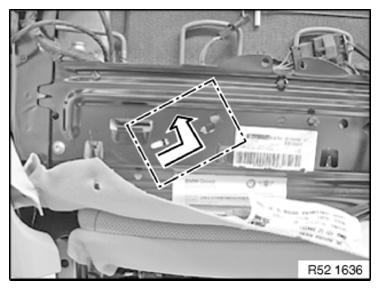

Fig 1: Removing Valve Body

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (3) and disconnect.

Unlock quick connectors and detach air hoses (1) and (2).

Valve unit for lumbar support:

Hose (clear), lumbar support drive
Hose (blue/red), lumbar support

Installation note:

Connections are coded against incorrect assembly.

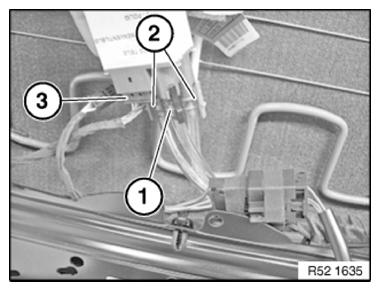

Fig 2: Identifying Lumbar Support Quick Connectors, Air Hoses And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out a FUNCTIONAL CHECK .
