52 14 041 Removing and installing inner cover on left or right front seat (older version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

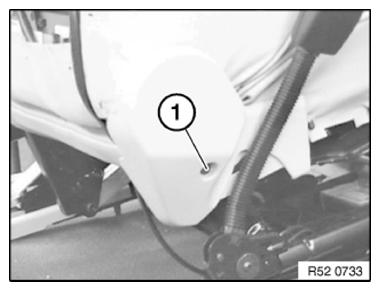

Release screw (1).

Fig 1: Identifying Front Seat Cover Screw
G09879818Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

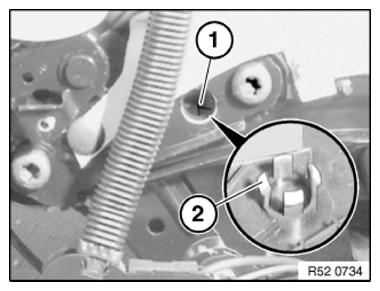

Cover is secured by guide (2) in bore hole (1).

Fig 2: Identifying Front Seat Cover Bore Hole And Guide
G09879819Courtesy of BMW OF NORTH AMERICA, INC.
