52 14 017 Removing and installing/replacing seat frame for driver's seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S SEAT .
Remove seat fabric.
See procedure for relevant seat type:

- NORMAL/ELECTRIC SEAT (OLDER VERSION)

- NORMAL/ELECTRIC SEAT (NEWER VERSION)

- SPORT SEAT (OLDER VERSION)

- SPORT SEAT (NEWER VERSION)

- COMFORT SEAT (OLDER VERSION)

- COMFORT SEAT (NEWER VERSION)
Remove backrest frame. See BACKREST FRAME (VERSION 1) or BACKREST FRAME (VERSION 2) .

Release all clips.

Installation:

If necessary, replace faulty clips.

Feed wiring harness (1) out of seat frame.

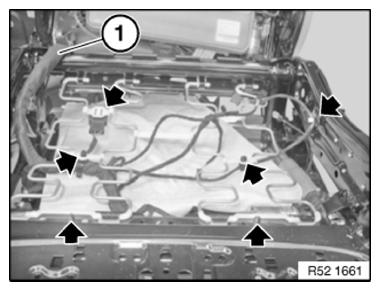

Fig 1: Locating Seat Frame Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Open rivets (1) on left and right.

Remove securing strips (2) on left and right.

Release screws (3).

Tightening torque 52 10 6AZ .

Remove seat frame from seat rail.

Fig 2: Identifying Seat Rail Securing Strips And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
