52 17... Replacing upholstery for front seat thigh support

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove THIGH SUPPORT

Fig 1: Identifying Front Seat Thigh Support Cover And Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic shows versions with climate control and seat heating.

Lever out cover welt in area (2).

Installation note:

Cover welt is fastened by hooks in cover (3).

Remove plug connections (4) and feed out through cover (3).

Remove cover (3) from upholstery and cover (1).

Version with seat heating or climate control:

Feed out cable (1) and remove upholstery (2).

Installation note:

Ensure correct cable routing (1).

Fig 2: Identifying Front Seat Thigh Support Upholstery And Cable

G04742853

Courtesy of BMW OF NORTH AMERICA, INC.

Version with climate control:

Remove separating net (1).
Lift out fan (2).

Fig 3: Identifying Front Seat Thigh Support Fan And Net
Courtesy of BMW OF NORTH AMERICA, INC.

Move the thigh support (1) completely to the front.

Raise latch mechanisms in succession from A to D, pulling the thigh support (1) forward at the same time.

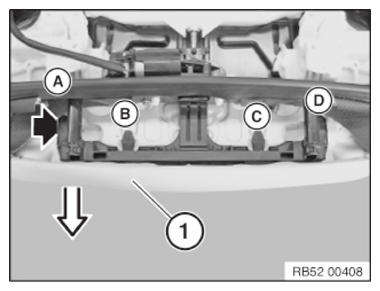

Fig 1: Pulling Thigh Support

G09880280

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert support for thigh support in correct position in the guide and lock.

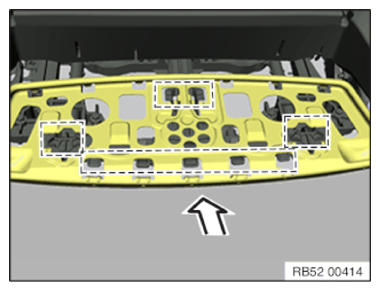

Fig 2: Inserting Thigh Support In Guide

G09880281

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from metal tabs.

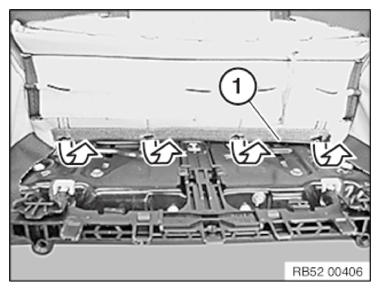

Fig 3: Detaching Seat Welt From Metal Tabs

G09880282

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt from support for thigh support.

Remove the mounting plate and foam part of the thigh support.

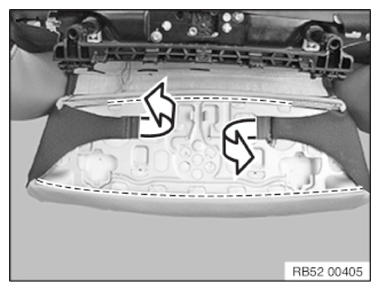

Fig 4: Detaching Seat Welt From Thigh Support

G09880283
