52 17 392 Removing and installing/replacing front left or right crash-active headrest

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Comply with SAFETY REGULATIONS for handling components with gas generators.
Incorrect handling may result in triggering of the crash-active headrest and thereby cause injury.

Switch off the ignition!

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE
Remove rear panel. See REAR PANEL (VERSION 1) or UPPER REAR PANEL (VERSION 2) .

Starting situation:

Head restraint is in the crash position after activation.

A triggered head restraint can be recognized by the padded section which has moved upwards.

Fig 1: Removing Crash-Active Head Restraint

G08486395

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock PLUG CONNECTION (1) and disconnect.

For easier access to the retaining clips (next operation):

Move head restraints downwards or
detach backrest cover (2) in the upper area.

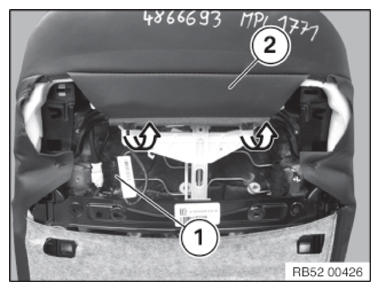

Fig 2: Detaching Backrest Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Lever out retaining clips (1)

Installation note:

Make sure the retaining clips are correctly seated.

Fig 3: Identifying Head Restraint Retaining Clips

G05478161

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

Fig 4: Lifting Head Restraint

G04742774

Courtesy of BMW OF NORTH AMERICA, INC.
