52 17 062 Removing and installing/replacing front left or right lumbar support with valve housing (active seat)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest
Partially remove backrest cover. See DRIVER'S SEAT or PASSENGER SEAT .

Unfasten plug connection (1) and disconnect.

Detach valve housing from pinetree clips.

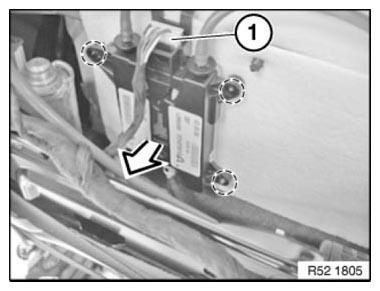

Fig 1: Detaching Valve Housing From Pinetree Clips

Courtesy of BMW OF NORTH AMERICA, INC.

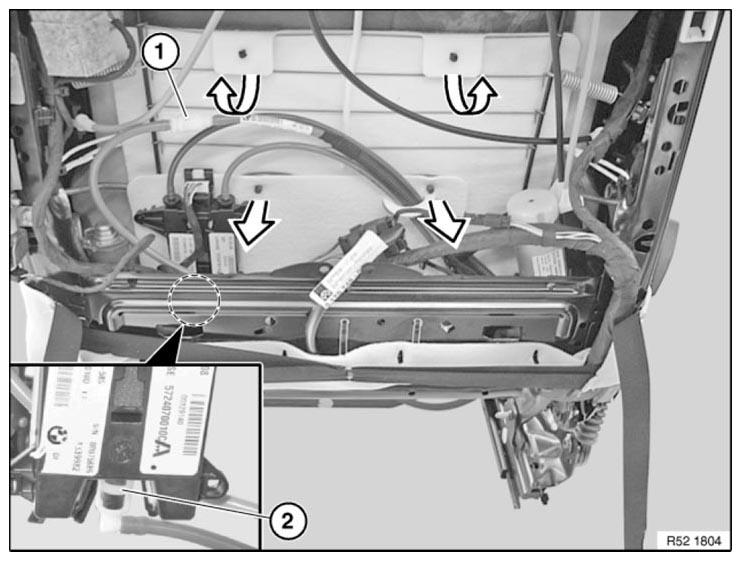

Fig 2: Removing Lumbar Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect quick connector (1) and feed air hose out of fleece mat.

Pop out upper fleece tabs and disengage from spring wire.

Pop out lower fleece mat.

Unlock and disconnect quick connector (2).

Remove lumbar cushion with valve housing downwards between backrest frame and backrest padding.

Overview of lumbar support with valve housing:

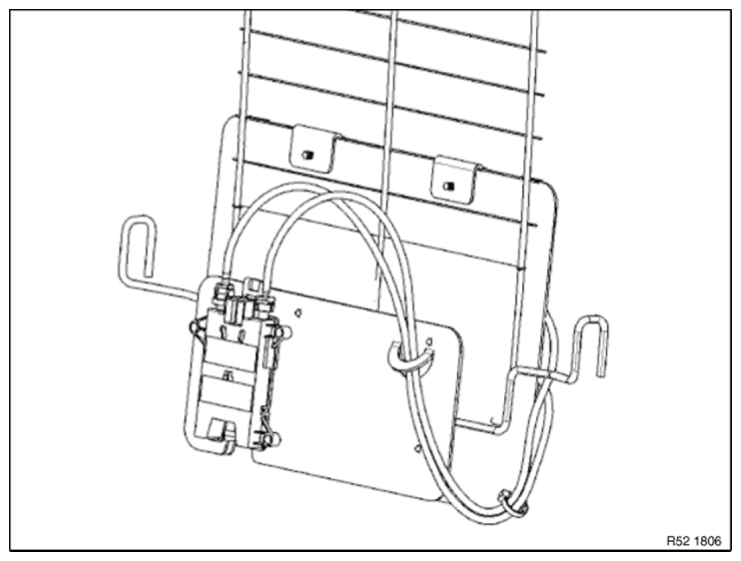

Fig 3: Identifying Lumbar Support Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check lumbar cushion for damage.

Make sure lumbar support is correctly fitted on fourth spring wire from below.

Air hoses must not be kinked.

Make sure valve housing is correctly seated.

NOTE: Carry out FUNCTION TEST .
