52 17 040 Removing and installing/replacing outer cover on left or right front seat (comfort)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unclip front cover in marked area.
Unclip cover in marked area from operating unit.
Unclip center cover in marked area.
Remove the cover backward from the seat mechanism.

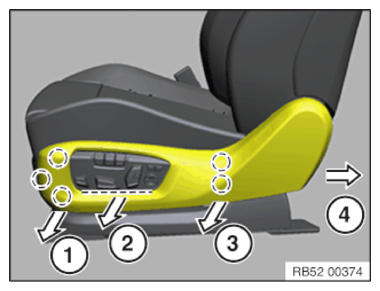

Fig 1: Removing Seat Mechanism Center Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Catches and guides in marked area must not be damaged.

Replace facing panel if necessary.

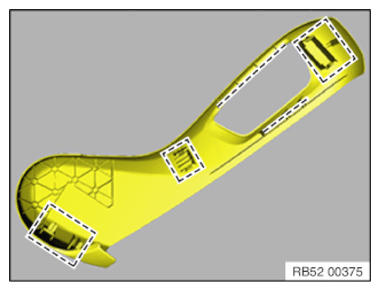

Fig 2: Identifying Seat Mechanism Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
